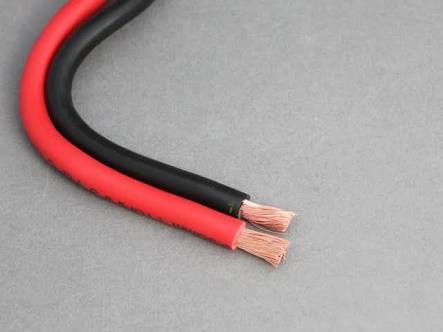

Automotive Battery Cables
We are also engaged in manufacturing the wide range of Battery Cable They have a high temperature resistance and are available in different sizes ranging. Made using pure bare conductors, these are annealed, bright and 99.97% pure.
Bestolite PVC Insulated Heavy Duty Starter Cables.
Manufactured to BSS 6862 / 71 & IS 2465 / 69 with bright annealed bare copper wire stranded together insulated with di-electric high grade PVC compound.
GRADE – BSS 6862 / 71
|
CONDUCTOR |
INSULATION |
|
||||
|
Nominal |
No. & Size |
Approximate |
Radial |
Overall |
Current |
Maximum Resistance per KM of conductor at 20"C |
|
|
|
|
|
|
|
|
|
SQ MM |
MM |
MM |
MM |
MM |
AMPS |
OHMS |
|
12.50 |
19/036" |
4.5 |
1.5 |
7.50 |
45 |
1.50 |
|
19.00 |
19/044" |
5.6 |
1.5 |
8.80 |
54 |
0.920 |
|
25.00 |
37/036" |
6.3 |
1.5 |
9.70 |
70 |
0.762 |
|
40.00 |
61/036" |
8.1 |
1.6 |
11.80 |
100 |
0.462 |
|
60.00 |
61/044" |
10.2 |
1.7 |
14.10 |
150 |
0.293 |
GRADE – BSS 2465 / 69
|
CONDUCTOR |
INSULATION |
|
||||
|
Nominal |
No. & Size Of Wires |
Approximate |
Radial |
Overall |
Current |
Maximum Resistance |
|
SQ MM |
MM |
MM |
MM |
MM |
AMPS |
OHMS |
|
16.00 |
101/0.45 |
5.90 |
1.20 |
8.45 |
57 |
1.150 |
|
25.00 |
168/0.45 |
7.60 |
1.40 |
10.65 |
71 |
0.6911 |
|
35.00 |
220/0.45 |
8.70 |
1.40 |
11.75 |
91 |
0.5277 |
|
50.00 |
325/0.45 |
10.60 |
1.60 |
14.05 |
120 |
0.3572 |
|
70.00 |
440/0.45 |
12.30 |
1.80 |
16.15 |
165 |
0.2639 |
|
95.00 |
485/0.45 |
14.70 |
1.90 |
18.75 |
200 |
0.204 |
|
120.00 |
614/0.45 |
16.70 |
2.15 |
21.25 |
225 |
0.153 |
GRADE – IS 694 / 1990
|
CONDUCTOR |
INSULATION |
|
||||
|
Nominal |
No. & Size |
Approximate |
Radial |
Overall |
Current |
Maximum Resistance |
|
SQ MM |
MM |
MM |
MM |
MM |
AMPS |
OHMS |
|
16.00 |
126/0.40 |
6.00 |
1.00 |
8.20 |
60 |
1.210 |
|
25.00 |
196/0.40 |
7.60 |
1.20 |
10.00 |
75 |
0.780 |
|
35.00 |
276/0.40 |
8.70 |
1.20 |
11.30 |
95 |
0.554 |
|
50.00 |
396/0.40 |
10.60 |
1.40 |
13.50 |
125 |
0.386 |
|
70.00 |
360/0.50 |
12.30 |
1.60 |
15.50 |
170 |
0.272 |
|
95.00 |
485/.050 |
14.70 |
1.80 |
18.50 |
210 |
0.206 |
|
120.00 |
608/.050 |
16.70 |
2.00 |
20.90 |
235 |
0.161 |
2) Bestolite PVC Welding Cables
PVC Welding Cables offered by us are made using copper or aluminum and are offered as half sheathed or sheathed type. They are PVC insulated and are offered in different thickness and diameters. Available in different resistance types.
Copper conductor |
Aluminium conductor |
|||||||
Nominal area of Conductor (Sq.mm.) |
Conductor Strands/ Wire dia (mm) |
Radial thickness of covering (mm) |
Approximate overall diameter (mm) |
Maximum Resistance at 200C(ohm/km) |
Conductor Strands/ Wire dia (mm) |
Radial thickness of covering (mm) |
Approximate overall diameter (mm) |
Maximum Resistance at 200C(ohm/km) |
16 |
513/0.2 |
2 |
10 |
1.21 |
0 |
0 |
0 |
0 |
25 |
783/0.2 |
2 |
12 |
0.78 |
0 |
0 |
0 |
0 |
35 |
497/0.3 |
2 |
13.7 |
0.55 |
494/0.3 |
2 |
13.7 |
0.9 |
50 |
702/0.3 |
2.2 |
15.3 |
0.39 |
702/0.3 |
2.2 |
16.5 |
0.63 |
70 |
999/0.3 |
2.4 |
17.3 |
0.27 |
999/0.3 |
2.4 |
18.3 |
0.45 |
95 |
1332/0.3 |
2.6 |
20.5 |
0.21 |
1332/0.3 |
2.6 |
20.5 |
0.33 |
120 |
0 |
0 |
0 |
0 |
1702/0.3 |
2.8 |
22.7 |
0.26 |
